Assembled specifically for the , the Revival Cycles Deluxe Cable Kit includes the core materials necessary to construct a compact, custom wiring harness for use with the m-Unit. Automotive grade wires, ferrules, zip-ties, heat shrink, 5 pole Wago lever nut, and waterproof main fuse holder are all included in this kit.
- TXL cross-linked thin walled wiring meets SAE J1128 standards and offers protection superior to PVC varieties whether it be against heat, solvents or abrasion. The wire lengths included in the kit should more-than-suffice for running wires anywhere you'd need on your project, with varying gauges both capable of handling necessary electricity and compact enough for a clean, easy install.
- Ferrules provide protection to the wire terminations at the m-Unit.
- Dual wall heat shrink seals out moisture and protects the ferrule terminations from vibration fatigue.
- Wire ties can be used to secure your harness to your frame reducing chaffing from vibration.
- Marine grade Delphi Metri-Pack fuse housing provides the main fuse required between your charging system and battery.
- Wago5 pole Lever Nut allows you to connect up to 4 wires to the AUX 12V output.
From ferrule crimpers to wire loom Revival offers a broad selection of wiring components to help you to create a reliable harness rivaling what you might get from an OEM.
/ / / / / / / / /

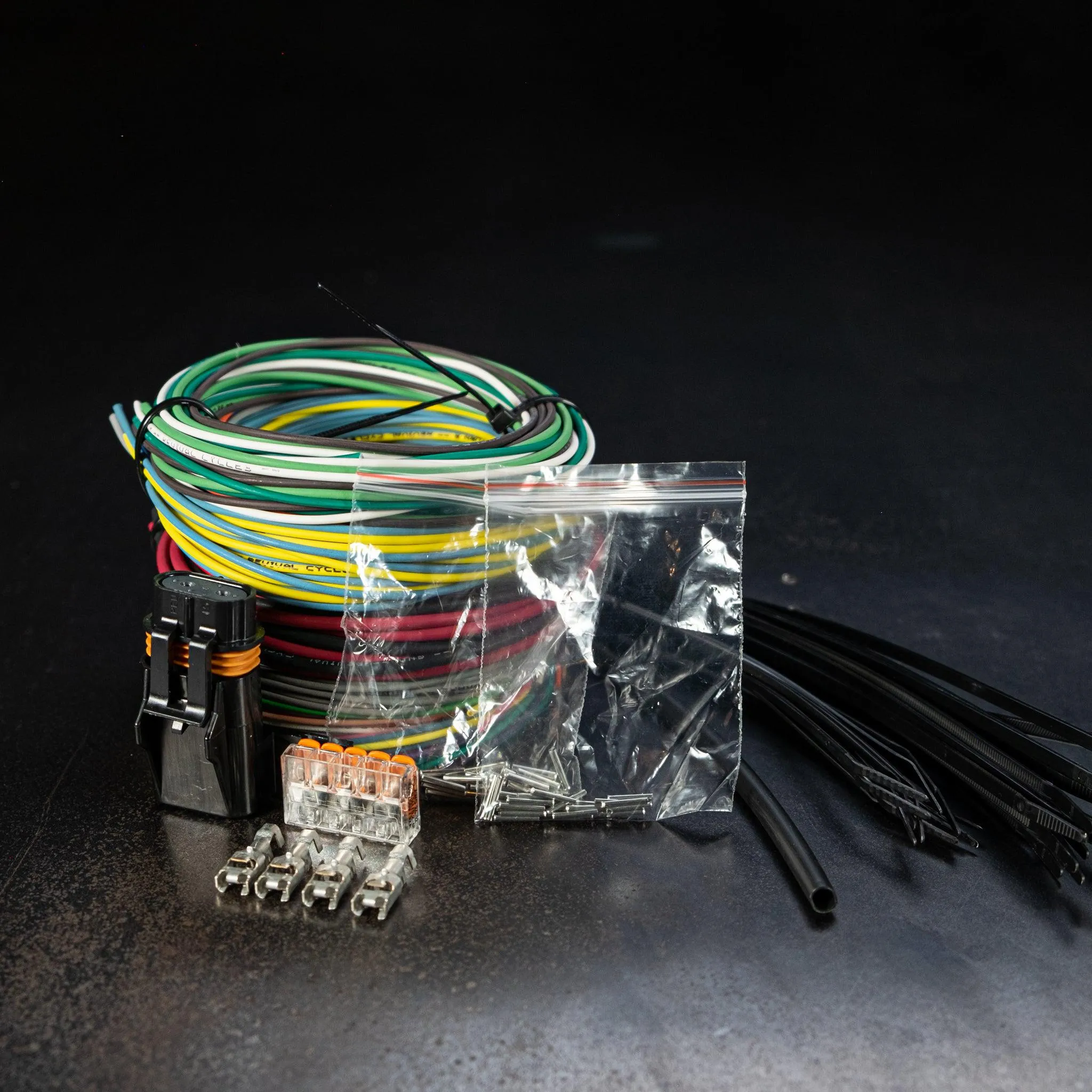

Kit includes each of the following:
- 15 X Small Cable Ties
- 15 X Large Cable Ties
- 25 X Small Ferrules
- 25 X Large Ferrules
- 1 X Waterproof Main Fuse Holder
- 1 X Wago 5 pole Lever nut
- 6" X Black 1/8" Heat Shrink
Wire:
| Use | Input / Output | Color | Wire Gauge | Length [Feet] |
| Batt Power 12V | N/A | red | 12 | 6 |
| Batt Ground | N/A | black | 12 | 12 |
| Power 12V (extra) | Output | red | 18 | 6 |
| Aux 2 | Input | Pink | 22 | 6 |
| Aux 1 | Input | Violet | 22 | 6 |
| Kill | Input | Dark Green | 22 | 6 |
| Stand | Input | Tan | 22 | 6 |
| Light | Input | Dark Blue | 22 | 6 |
| Brake | Input | Grey | 22 | 12 |
| Horn | Input | Orange | 22 | 6 |
| Turn R | Input | Yellow | 22 | 6 |
| Turn L | Input | Light Blue | 22 | 6 |
| Start | Input | Light Green | 22 | 6 |
| Lock | Input | Brown | 22 | 6 |
| Control Grounds | Output | Black | 18 | 12 |
| Aux 2 | Output | pink | 18 | 6 |
| Aux 1 | Output | green | 18 | 6 |
| Ignition Out | Output | brown | 18 | 6 |
| Hi Beam Out | Output | dark blue | 18 | 6 |
| Light (Lo Beam) | Output | white | 18 | 6 |
| Brake Out | Output | grey | 18 | 6 |
| Horn Out | Output | orange | 18 | 6 |
| Turn R Out | Output | yellow | 18 | 12 |
| Turn L Out | Output | light blue | 18 | 12 |
| Start Out | Output | light green | 16 | 6 |
TXL Cross-Linked Thin-Walled Automotive Wire:
- Meets SAE J1128 Standards
- Temperature range -40° (-40°) - 257° (125°C)
- Single conductor, stranded, bare copper
- Insulated with Chemically cross-linked polyethylene
- Smooth surface finish
- Resistant to moisture, grease, oil, gasoline, most acids and solvents
- Superior abrasion resistance
Wago 5 Pole Lever Nut:
- Nominal Current: 20 A
- AWG: 24-12
- Rated voltage:600V
- Operating temperature: 220°F (105°C)
- cULus LISTED splicing wire connector file #E69654
- Shrinks to 1/2 the original size at 248°F (120°C).
Delphi 12033769 Metri-Pack 630 Series Female Connector:
- AWG: 14-12
- Metri-pack 630 sealed connectors exceed requirements for most marine, vehicle, heavy-duty mobile and industrial equipment applications.
Heat Shrink:
- Material: Polyolefin
- Shrink Ratio: 3:1
- Shrinks to 1/2 the original size at 248°F (120°C).
