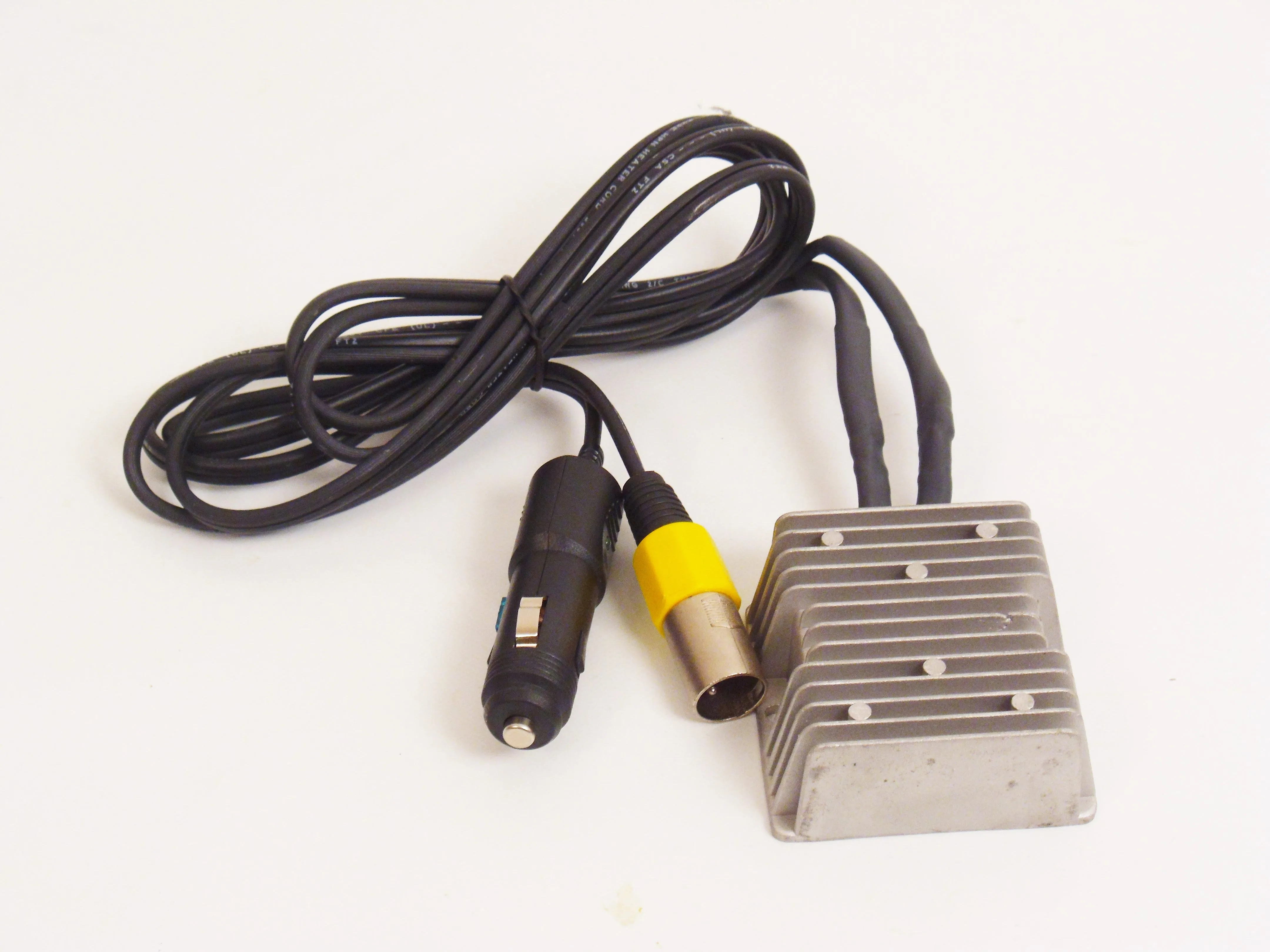

Name: Power2Go Automobile CLA to 28v Wheelchair Charger
SKU: 599660

Conveniently charge your wheelchair from your adapted van's cigarette lighter socket on the go! Add roughly one hour of intermittent wheelchair operation for each hour of charging.

Most home wheelchair chargers that you plug in charge at 8 Amps, and so does the Power2Go Automotive Wheelchair Charger!

Specifications

Input Voltage = 12V DC (9V to 28V DC) fused at 15 Amps
Output Voltage = 28V DC
Output Current = 5 Amps, 8 Amps, or 10 Amps
Max Power = 140 Watts, 220 Watts, 280 Watts
Charge Time = roughly similar to your home wall outlet AC charger
Durable, completely waterproof potted aluminum enclosure
Dimensions: 2.9"x2.9"x1.25" (74x74x32mm)
Weight: 1 pound
Over-current protection
Overheat protection
Short-circuit protection and automatic recovery
Heavy-duty 18 AWG wires handle the rough environment of wheelchair-accessible vans

Models Comparison

140 Watt 5-amp model can be plugged directly into an automobile CLA socket (cigarette lighter adapter) which should be rated to handle 15 amps or a minimum of 12 amps. Check your vehicle's user manual.
224 Watt 8 Amp - The same capacity and charging time as your home AC wall charger your wheelchair came with. Features Anderson plugs and must be wired to an existing, available 20 to 25 amp fuse or breaker on your vehicle's fuse panel using minimum 14 AWG 90°C (194°F) THWN-2 or THHN copper wire (we include 3 ft, 12 AWG wire harness with Anderson plug and fuse holder for your convenience)
280 Watt 10 Amp - 20% greater capacity and less charging time than your home AC wall charger your wheelchair came with. Features Anderson plugs and must be wired to an existing, available 25 to 30 amp fuse or breaker on your vehicle's fuse panel using minimum 12 AWG 90°C (194°F) THWN-2 or THHN copper wire. (We include 3 ft, 12 AWG The wire harness with Anderson plug and fuse holder for your convenience.) Output Anderson plug wire harness should be directly wired to wheelchair's battery terminals (connected in series).

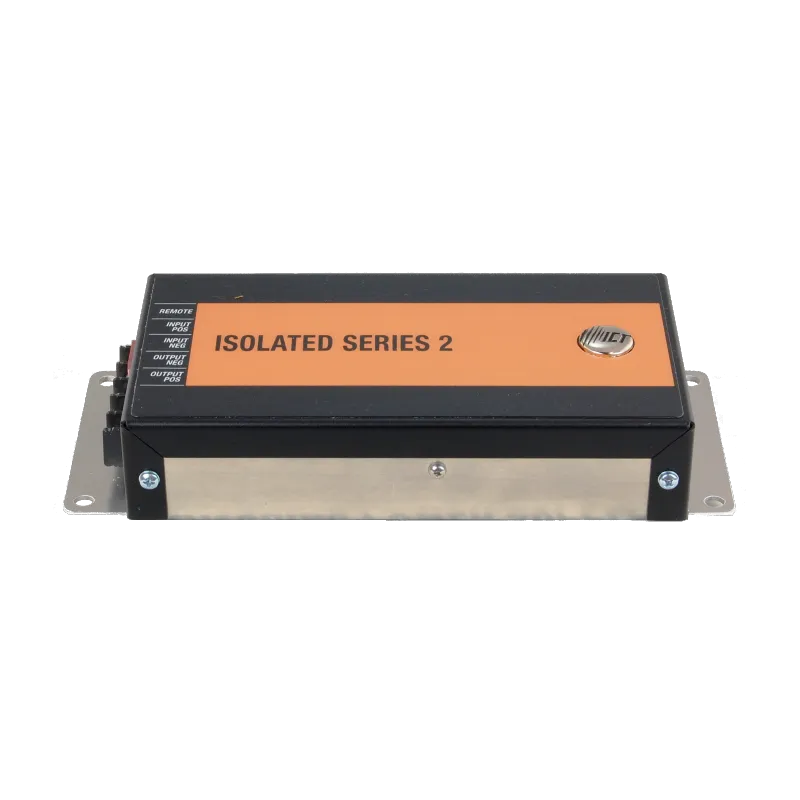

- Heavy-duty isolated. The best. Only one available of each!
- 140w CLA to 3 Prong XLR Model - 12v 12a to 27.6v 5A
- 280w Anderson TO 3 Prong XLR - 12v 24a to 27.6v 10A models

RECOMMENDATIONS & PRECAUTIONS

ONLY use when the engine is running to avoid draining your van's battery.
Most automobile cigarette lighter sockets are rated and fused to handle up to 10 Amps, check with your car's dealer if you are unsure or concerned about its capacity or blowing a fuse.
Safety Fuse: Replace with 10 A, 12 A, or 15 A glass cylindrical automotive AGC style fuse available at any auto parts store
Never use submerged in water. Input and output wires will short with water intrusion. Allow to fully dry before use

Don't accept inferior alternatives! The only other automotive wheelchair charger on the market only supports 2 Amps which means to charge a large power chair with two Group 24, 70 amp hour batteries you would literally have to drive around for something like 35 hours.

VEHICLE-INTEGRATED heavier-duty version is available for Recreation Vehicles, Buses, Paratransit, Yachts, Aviation, or Military.
