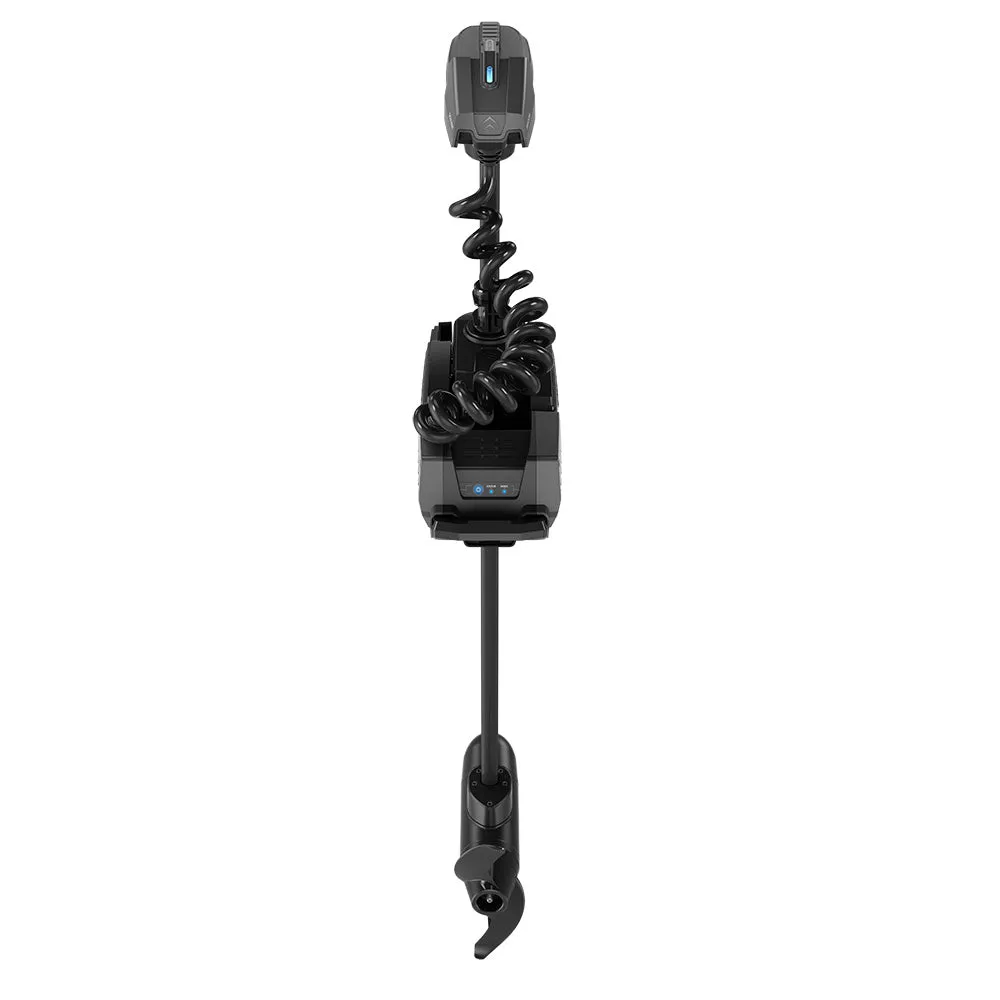

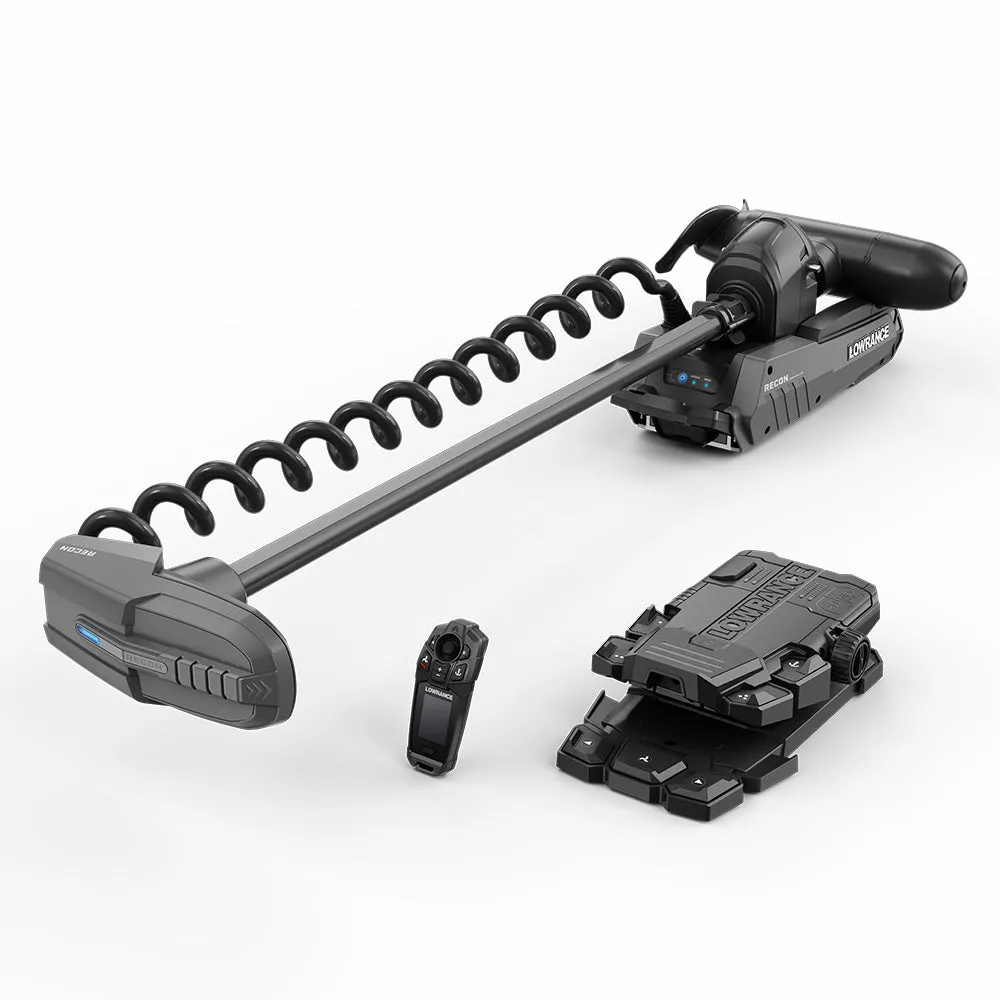

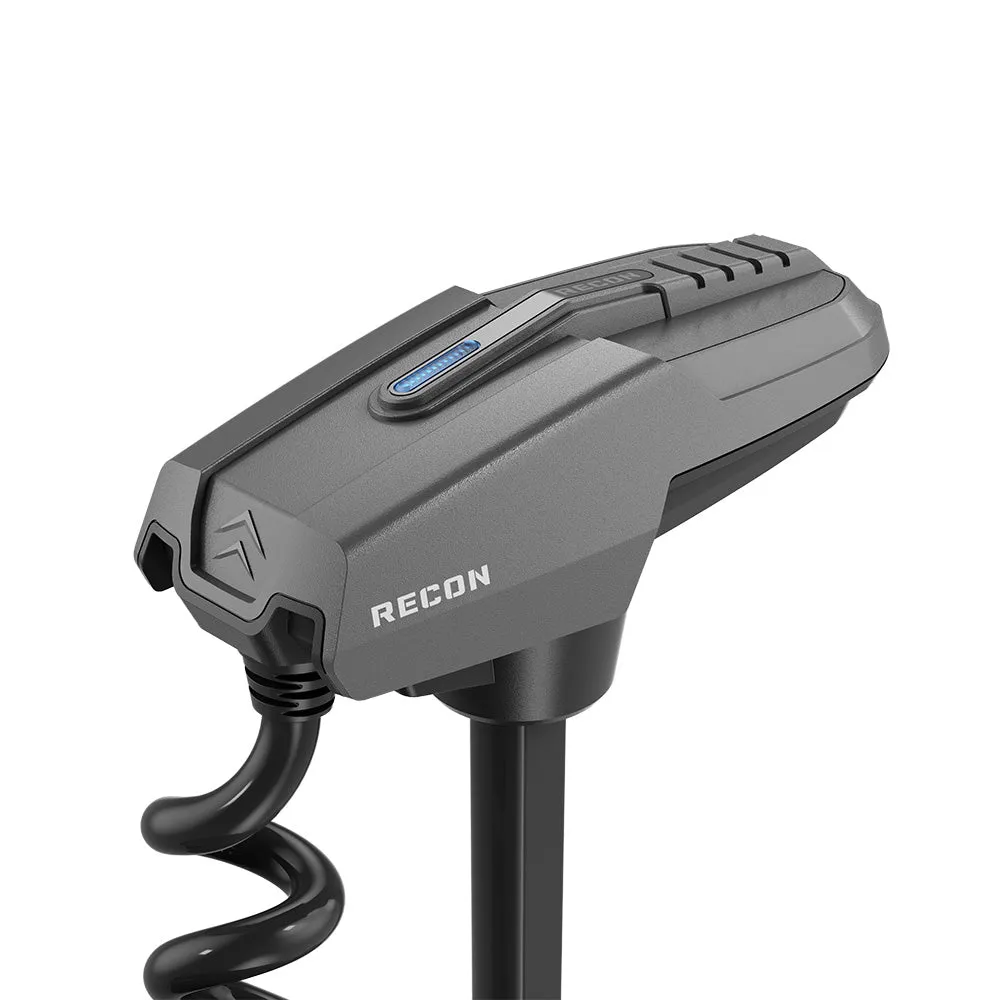

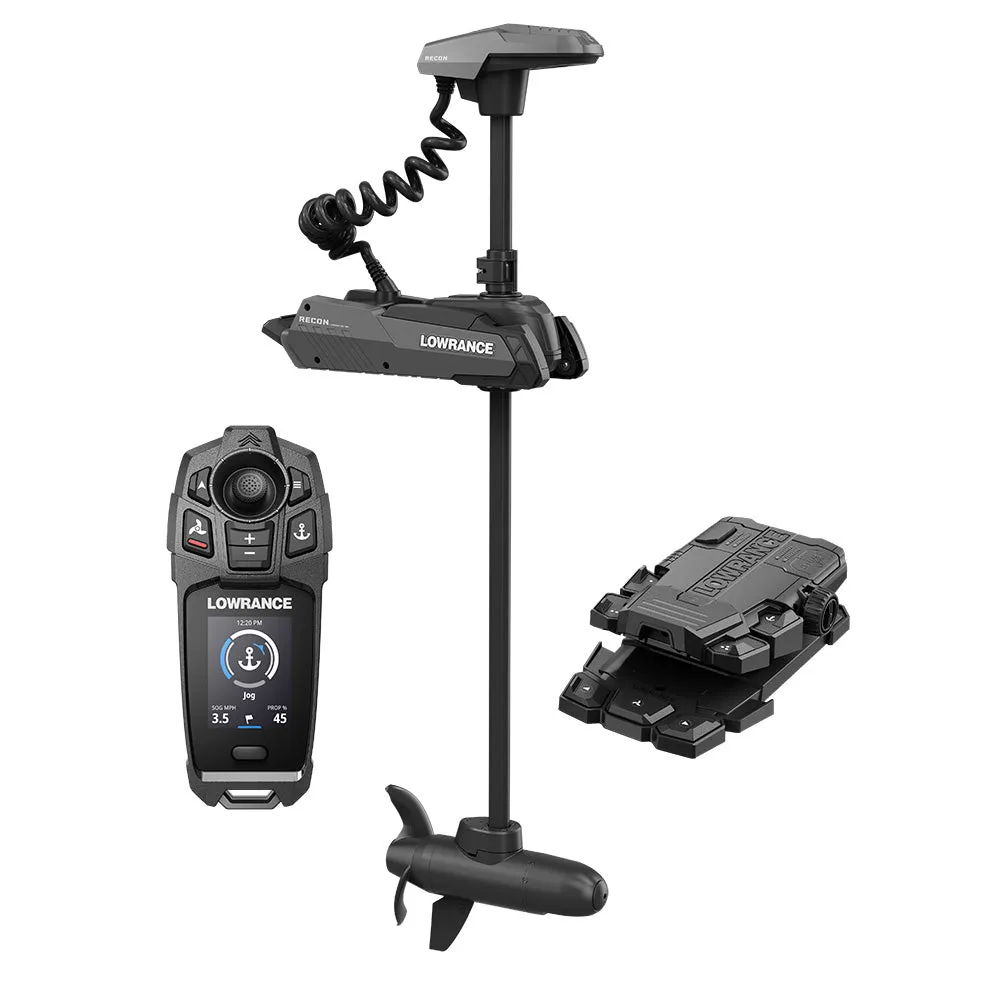

Recon™ FW 72" Trolling Motor - Includes Freesteer Joystick Remote, Wireless Foot Pedal & HDI Nosecone

This Recon™ trolling motor is designed for freshwater use and has a 72” shaft. Also, the trolling motor includes a joystick remote, wireless foot pedal, and HDI nosecone.

Revolutionary control

The FreeSteer™ remote revolutionizes positional control with its unique jogging abilities. FreeSteer™ unlocks the ability to execute diagonal jogs in 8 directions. Now anglers can move anchor positions freely, in almost any direction, without re-anchoring the boat.

For total flexibility, Recon™ Freshwater models also include a wireless foot pedal, with a detachable and programmable lower keypad. Combined with full display integration, users can control from anywhere onboard.

Unparalleled Precision

Superior accuracy goes beyond the joystick. Recon™ boasts best-in-class steering speeds, 1-degree steering adjustments, AND a class-leading foot pedal, delivering 40 degrees of heel-toe travel.

Lowrance-Pedigree Sonar

The freshwater trolling motor model includes an HDI nosecone, allowing easy access to Lowrance-pedigree sonar for noiseless images beneath the surface. An optional upgrade to Active Imaging™ 3-in-1 sonar gives instant access to additional clarity and more views.

Tough Enough for Anything

The indestructible carbon-fiber-infused composite shaft is so solid that Lowarance gives it a lifetime warranty, but it doesn’t end there. The user-serviceable design helps users keep the trolling motor running for longer, along with a range of clear diagnostic error codes, visible on the remote, mobile app, or display.

Designed for Anglers

Lowrance knows the details that matter. Whether it’s the multiple accessory mounting points, one-hand cam lock depth collar to enable on-the-go adjustments, or the LED indicators and back-lit controls that guarantee great visibility even as the light fades, that’s the difference that comes when users choose Lowrance.

Features:

• Best-in-class power
• Precision GPS positioning
• Near-silent brushless 24V/36V motor
• Lightweight FreeSteer™ joystick remote with color LCD
• Wireless, configurable foot pedal
• HDI Nosecone
• Plug-and-play upgradeable nosecone
• Multiple accessory mount points
• NMEA 2000 connectivity
• Lifetime shaft warranty
• 3-year motor warranty

Specifications:

Autopilot:

• Compass Sensor Support: Internal
• Maximum Thrust: 120 Lbs. @ 36v; 97 Lbs. @ 24v
• Maneuvers / Turn Patterns: Yes
• Steering Modes: Wireless foot pedal and remote

Electrical:

• Supply Voltage: 24v or 36v

Environment:

• Waterproof Rating: IPX7

MFD:

• Sonar (inc. compatibility): HDI Sonar Nosecone

Physical:

• Dimensions (W x H x D): 11 ¾” L, 7 ¼” W, 4 ½”
• Mounting Type: Pivot style

Radar:

• Frequencies: Medium/High Chirp Sonar, 455/800 kHz

Other:

• Warranty Period: 3-year, lifetime warranty on shaft

Specifications:

• Salt Water/Fresh Water: Fresh
• Shaft Length (Inches): 72"
• Voltage - Input Range (Volts): 24v or 36v
