Though the design was inspired by Baja Designs’ legendary 8-inch La Paz HID; The LP9 Racer Edition LED Pod features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes nine forward-projecting LEDS to produce 8,374 lumens and six LEDs for Integrated Peripheral Technology (IPT) which produce 2,302 lumens. The IPT sports an incredible 200-degree spread of usable light. The housing provides exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, high power mode, the LP9 racer easily takes care of all your lighting needs.
Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration perfect for the demands of high-speed driving. The Racer Edition has a similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService® technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens

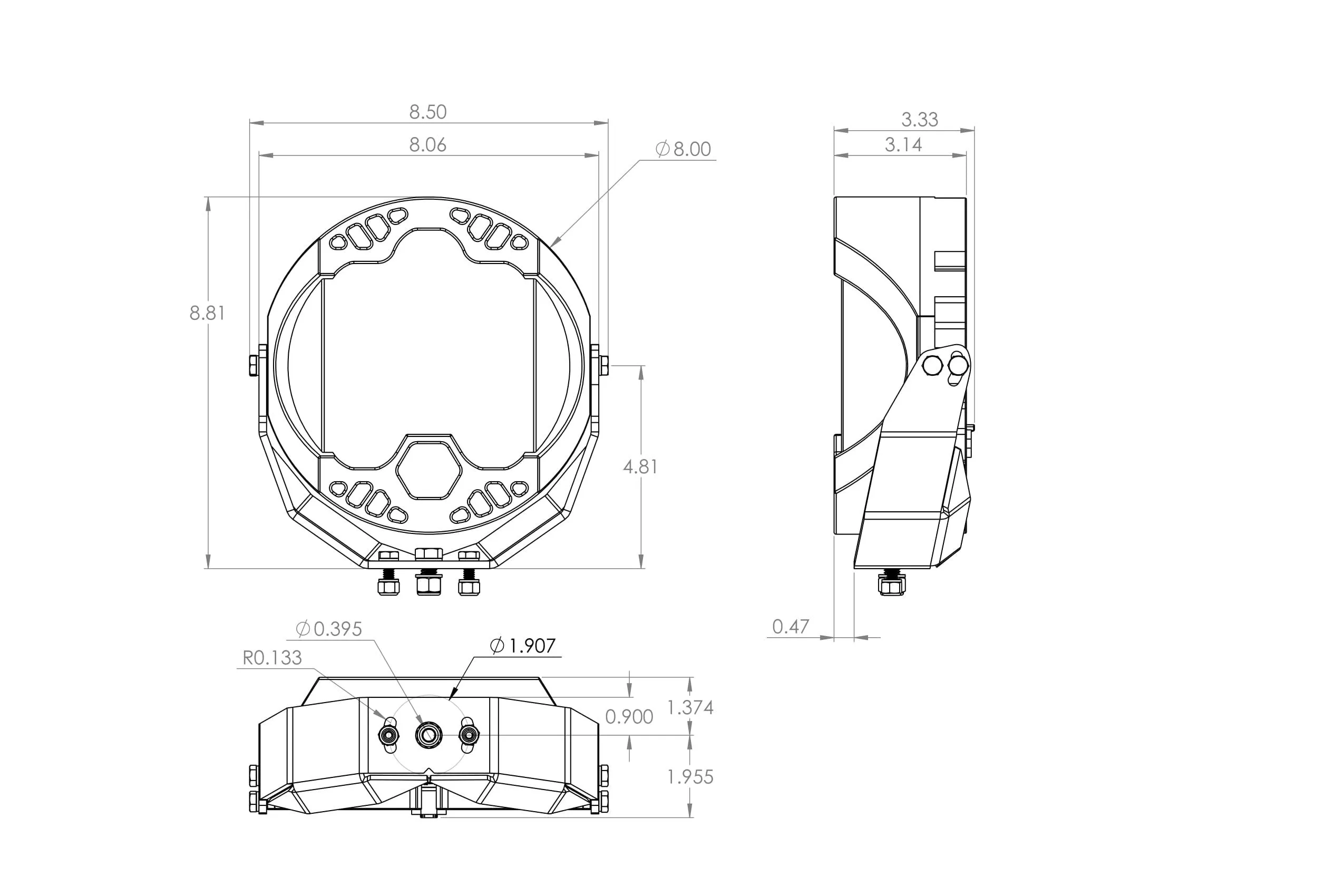

Dimensions
| Depth (in.) | 3.250 |
| Height (in.) | 8 |
| Length (in.) | 8 |
| Weight (lbs.) | 6.500 |
Specifications
| Amperage Rating (A) | 9.600 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.200 |
| Backlight Wattage (W) | 2.800 |
| Beam Pattern | Racer Edition Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 8374 |
| Description | Racer Edition Spot; Amber |
| Housing Color | Black |
| Housing Material | Hard Anodized Machined Aluminum |
| Lens Color | Amber |
| Lighting Modes | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lens Material | High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity | 9 |
| Lighting Type | LED |
| Lighting Technology | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP9 Racer Edition LED Light Pod |
| Secondary Amperage Rating (A) | 1.520 |
| Secondary Brightness (Lumens) | 2302 |
| Secondary Light Quantity | 6 LEDs |
| Secondary Lighting Type | LED |
| Secondary Lighting Technology | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 21 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 132.480 |
| Wiring Harness Included | No |
Standards & Compliance
| Patent No. | 5,504,603 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
